Aluminum MILEX
Shock & Vibration Absorbing
Aluminum Rackmount Cases
Engineered for maximum protection, our aluminum rackmount cases are designed to absorb shocks and vibrations, ensuring your equipment remains safe and is EMI protected in the harshest environments.
Make Contact Today
DESAPRO MILEX rackmount cases are renowned for their small size, light weight, high-quality construction, durability, and the exceptional protection they offer to sensitive equipment during transportation, operation or storage. These cases are designed to withstand the most challenging conditions, ensuring the safe and secure transport of valuable items. In this comprehensive analysis, we will explore the features, applications, benefits, and technical specifications of DESAPRO MILEX transit cases, providing an in-depth understanding of why they are the preferred choice for the defense industry.
THE MILEX FAMILY OF RACKMOUNT CASES

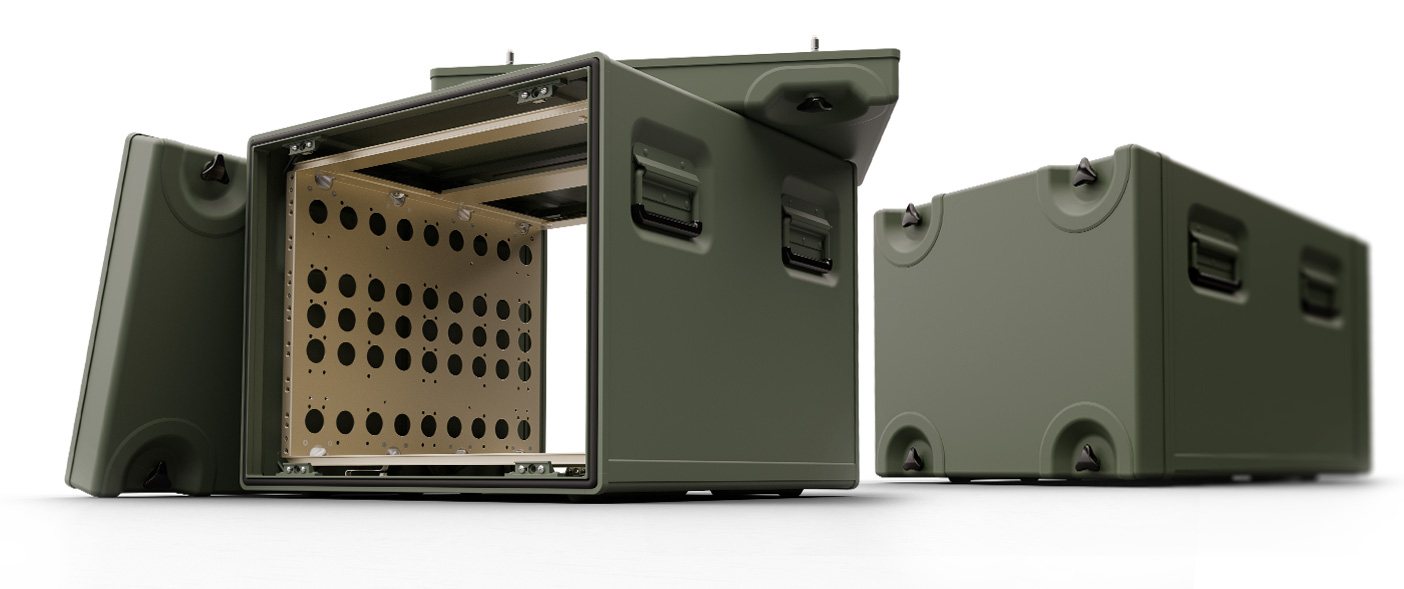

MILEX SHOCKMOUNT
The MILEX rackmount Cases are intended for use in extreme conditions. The electronics are attached to a shock mounted chassis, not directly to the shell. A minimum of 8 shock and vibration absorbers serve to deflect any mechanical stress on the housing. After attachment of the chassis the case is securely sealed with a cover to protect the contents against dust, sand and water.

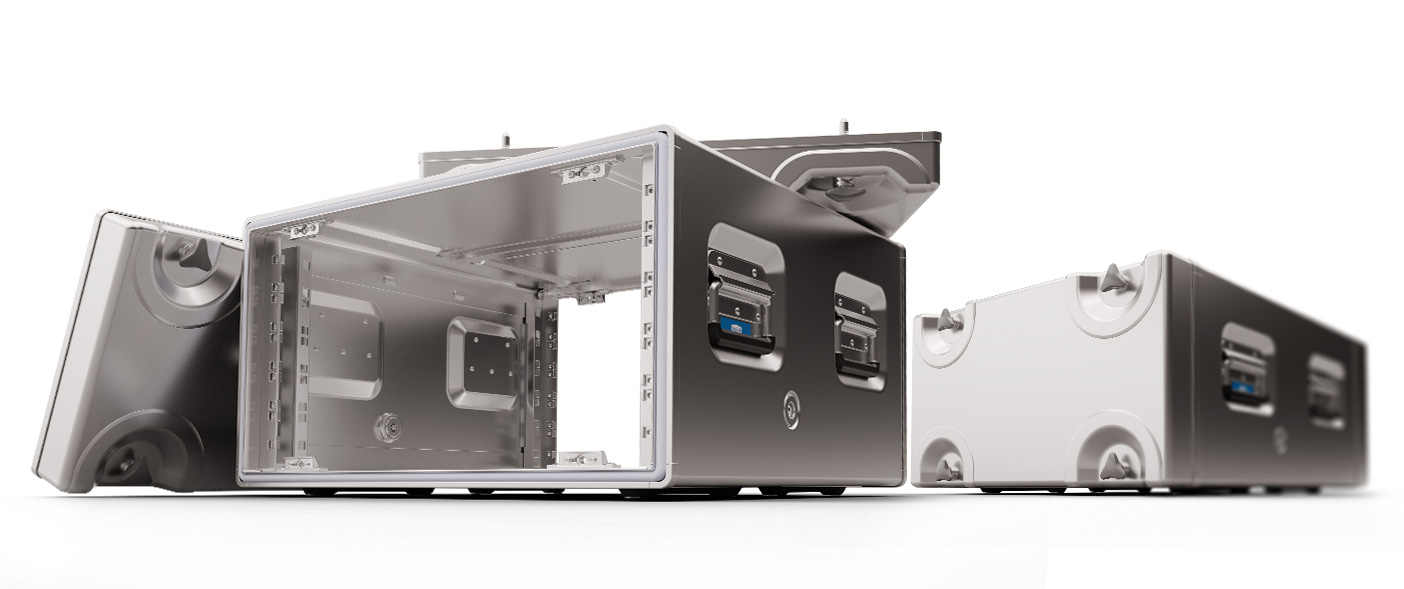

MILEX Hard Mount
The MILEX Hard mounted Rackmount Case is a standard Case without a shock mounted chassis. It is intended for applications where vibration protection is not critical. All other protective features and outer dimensions are equivalent to the Shock mounted case.

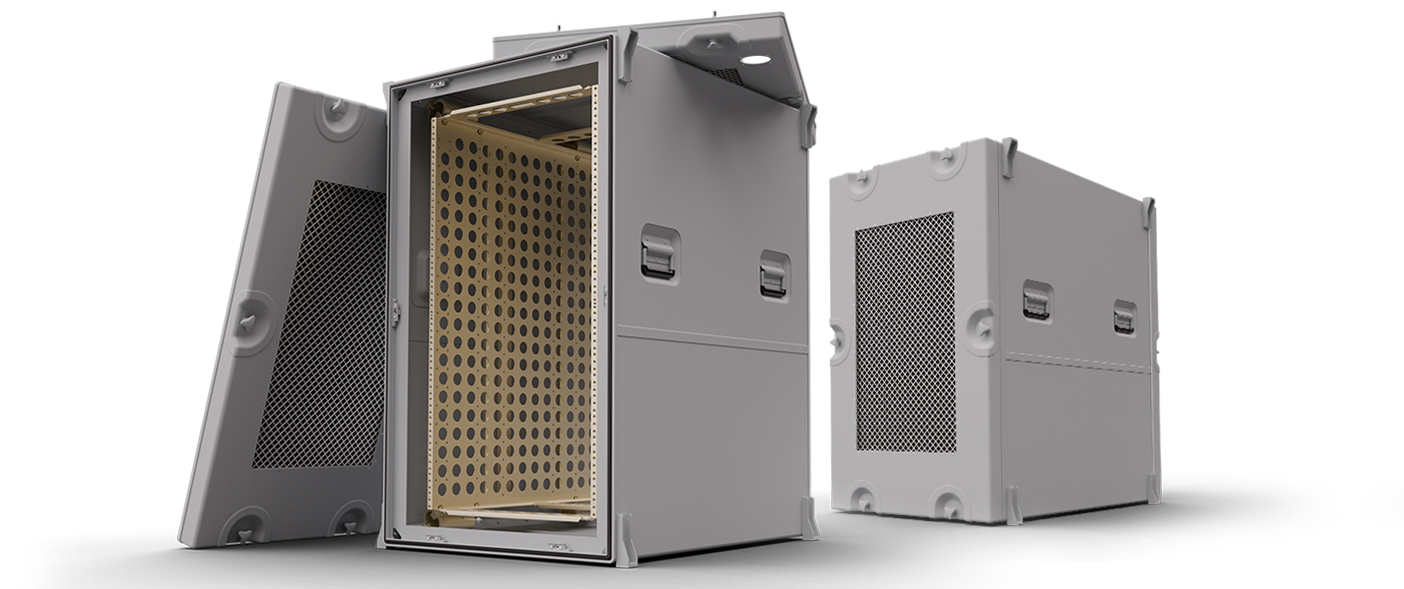

MILEX WIREROPE
The MILEX WR transit case is a 19’’ Transit case with the chassis mounted on stainless steel spiral with wire rope shock absorbers. These types of shock absorbers are used where sensitive electronics have to be protected from vibration and particularly against severe shock. The wire rope shock absorbers ensure the proper abatement not provided by the shock absorbers in the shock mounted transit cases. Typical applications would be for protection on ship, submarines, helicopters or other aircrafts.
MILEX SPECIAL
There are many special rackmount cases available such as small and light airline on-board cases, MILEXPro with a removable chassis, ½ 19 inch cases, or special sizes such ad double cases, etc.

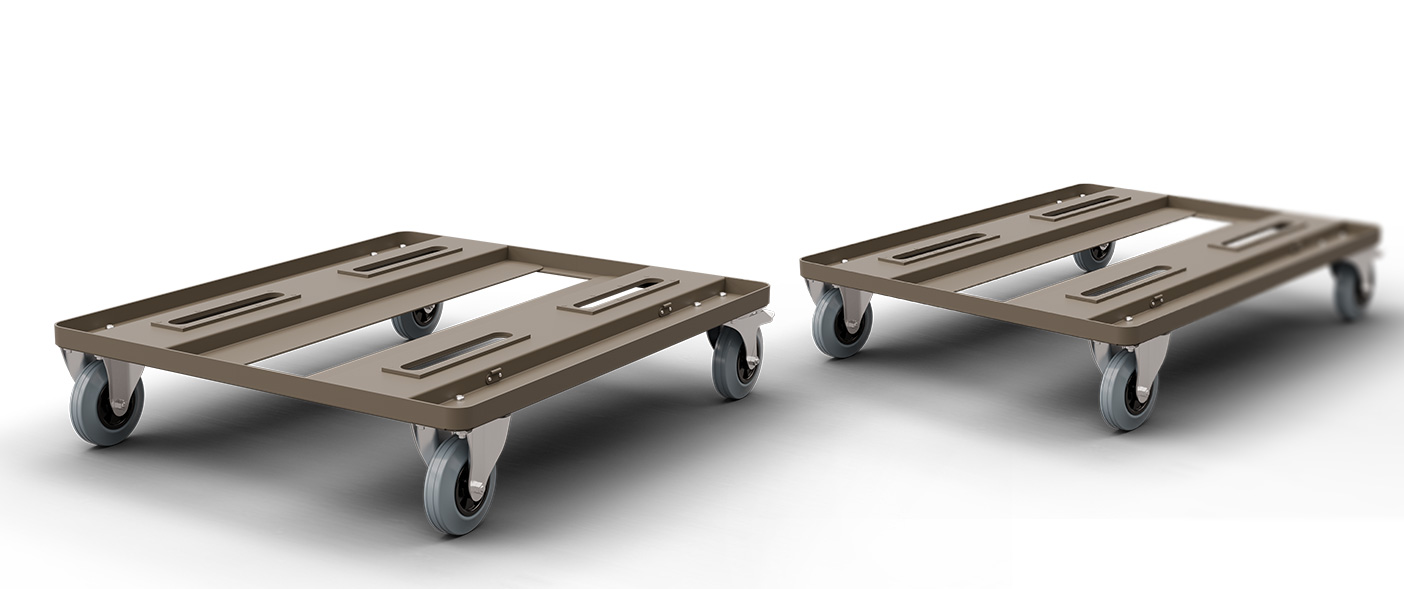

MILEX Dolly for Aluminum 19-Inch Rackmount Case
The durable and lightweight dolly is designed to support and transport any size of aluminum rackmount cases with ease.
It is built of a sturdy Aluminum frame, heavy-duty, but smooth-rolling casters (lockable wheels for stability during stationary) and
secure mounting points to keep the rackmount case steady during movement.

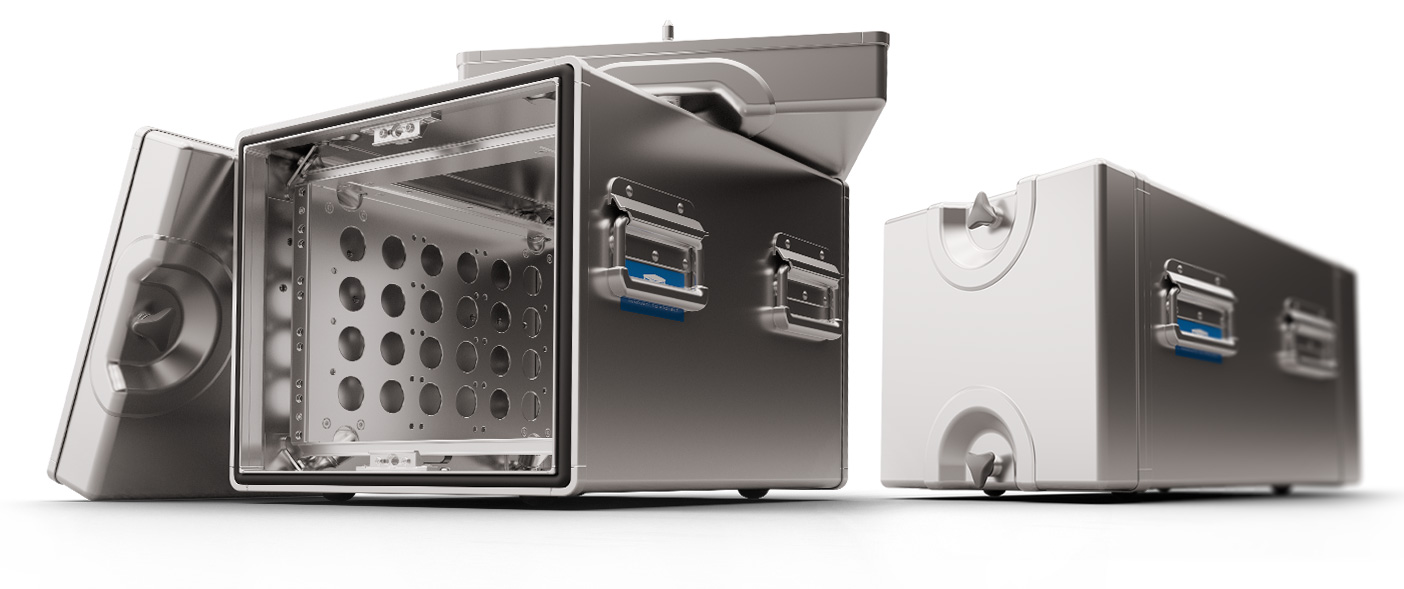

Main components of the
DESAPRO MILEX aluminum transit case
The below illustrations details the key component that make up the MILEX Case
Self-supporting housing
A welded and rigid construction forms a self-supporting shell that is both light and rugged. The entire aluminum construction is shock proof and resistant to extreme temperature change, conductive and fully recyclable. Stacking feet on the bottom and indentations on the top of the housing provide stable stacking of the cases. The standard equipped cases include a pressure equalization valve. Case connections and securing the cases to any bolting pattern are available for specific applications.
Shock mounted chassis
The core of the case is a shock mounted chassis. Depending on the model and size, equipment can be fitted either from the front or the rear of the case. In order to keep the weight down and allow for optimal ventilation, the chassis are designed with large holes. The chassis is connected to the housing shell by an electrical ground strap.
Cover
All MILEX cases are protected against outside influences through a bolted cover with gasket. Easily operated closures are recessed in the housing cover and ensure a solid seal. The cover space can be used for I/O panel, windows, cable pouches, ventilation louvres etc.
OVERVIEW
The MILEX case is a water and dust proof transit case for 19″ electronics that includes shock and vibration absorption features. MILEX transit cases are NATO approved and are designed to meet the rigid requirements of U.S. MIL_STD specifications in addition to most international specification requirements. MILEX transit cases represent the most comprehensive line available today for the safe packaging of mobile electronics made exactly to customer’s specifications. DESAPRO has developed a unique expertise in designing and custom manufacturing to deliver the right quality for your application on time.
MILEX cases are designed and manufactured to the specific requirements of environmental protection required by the equipment being contained and transported. This provides the maximum protection while also affording other essential and desirable features.
KEY FEATURES
Material Quality:
- Housing and covers are made of a salt-water-resistant alloy manufactured exclusively for DESAPRO.
- Gaskets and shock mounts made of high-quality elastomer.
- Fasteners and other hardware are corrosion-resistant or non-corrosive
Finishes:
- Housings and covers produced with natural aluminum finish or painted per FED=STD, RAL or BS-381C
- Shock-mounted chassis alodined per MIL-5541E, Type 1, Class 1A
Range of application:
- -55°C to +85°C, Relative humidity at 55% (condensation possible).
- Dynamic load for 9 – 45kg standard shock mount configuration, (other payloads on request).
Degree of protection:
- Jetwaterproof IP 65 per EN 60529 (MIL-STD-810) against the intrusion of dust and moisture from all directions.
- Mechanical stress such as vibrations and shock

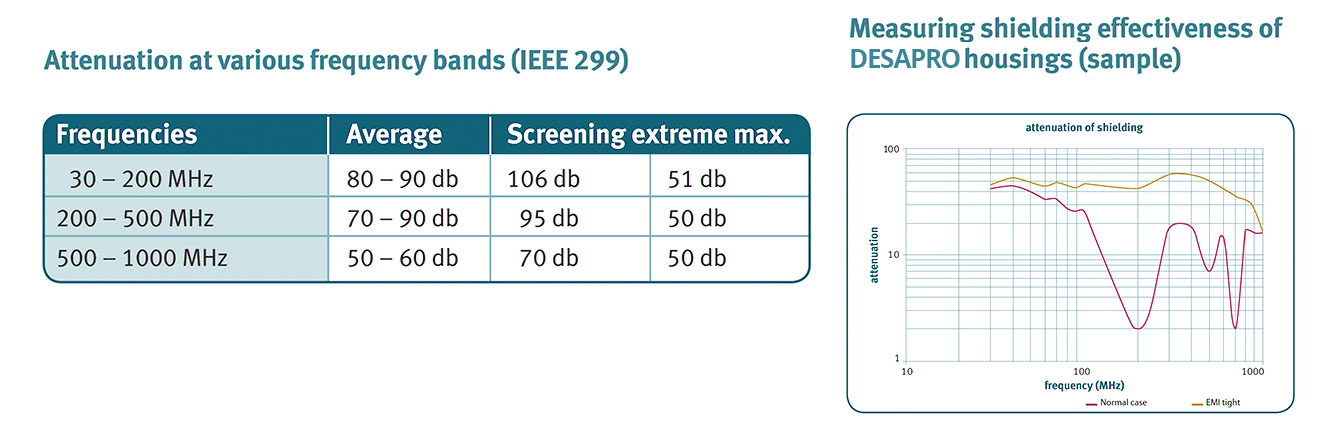

- High-Frequency interference (EMI), RFI.
Standard sizes:
Dimensions of standard 19″ transit cases as per DIN 41494 (IEC 297)
- Chassis sizes: 19″ and ½ 19″
- Chassis height: 2 U to 15 U (1 U =44.45mm)
- Chassis depths: 219, 350, 480, 610, 762 mm
- Cover depths: 63, 103, 153 mm
APPLICATIONS OF DESAPRO MILEX TRANSIT CASES

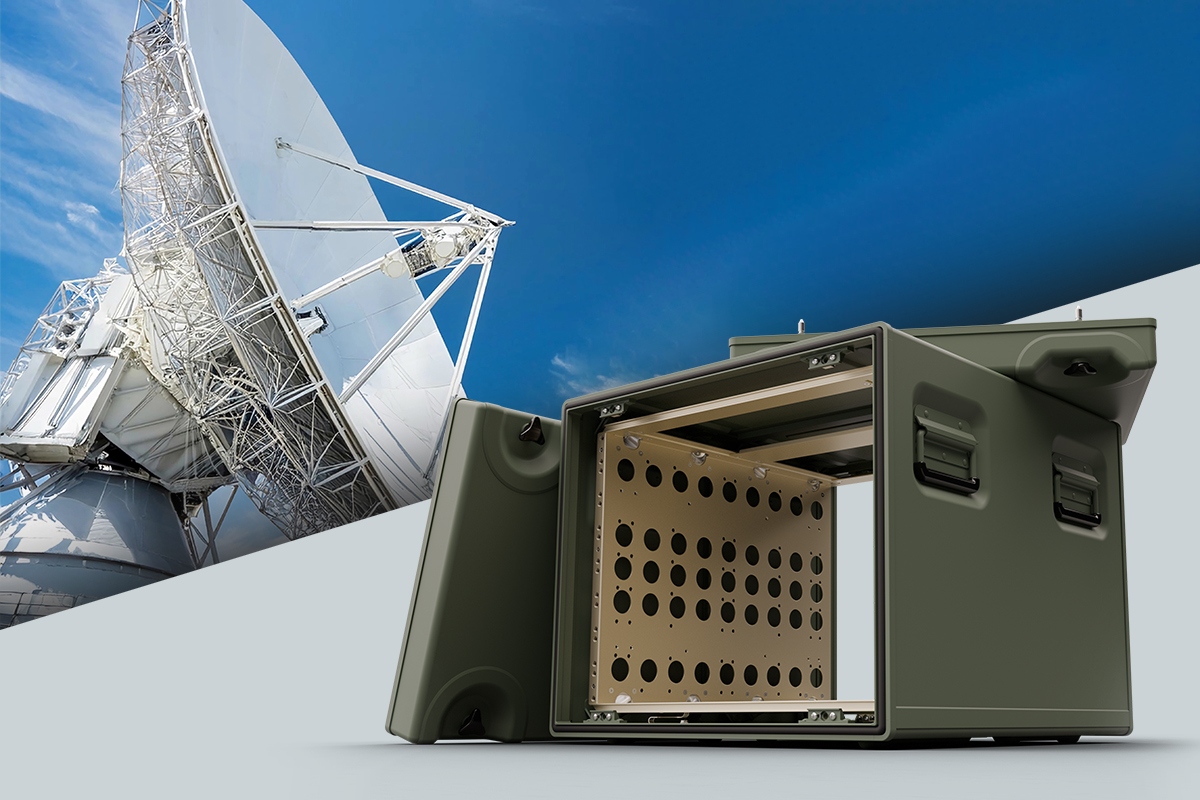

Satellite
Aluminium transport cases are designed to securely store, transport, and protect sensitive satellite components and equipment, and ready any satellite system for deployment. These cases are lightweight and essential in the defense & aerospace industry, where the integrity of delicate hardware must be maintained against environmental and mechanical stresses during transport, storage and operation.

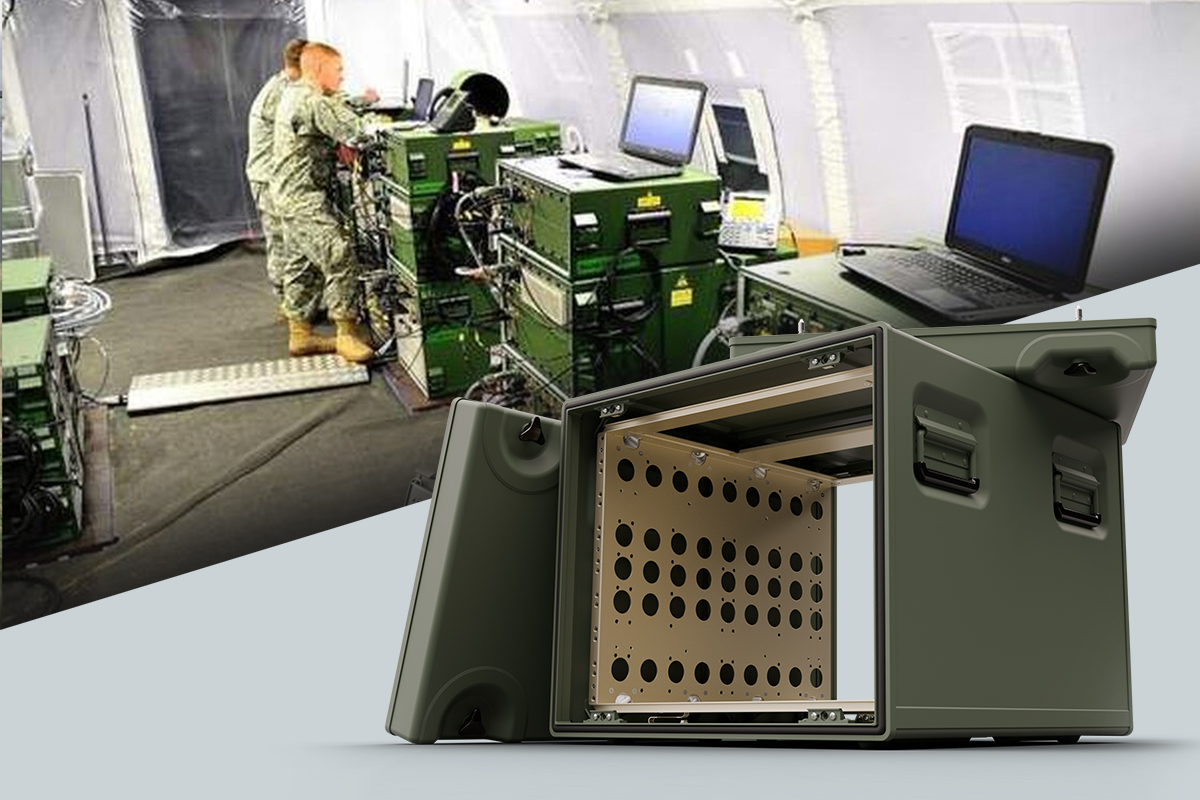

COMMS/C4ISR
At DESAPRO, we specialize in COMMS/C4ISR solutions that enhance mission-critical communication and command systems for military and aerospace applications. Our advanced products support all aspects of C4ISR ensuring secure and reliable operations in demanding environments. With a focus on innovation and resilience, DESAPRO’s solutions are engineered to optimize and protect vital communication and control networks, meeting the stringent requirements of the defense sector.
Training and Simulation
There are many training simulation systems (e.g. gunnery, shoulder launcher, missiles, etc.) for the armed forces which require professional and innovative packaging solutions. Specialized cases for Military Training & Simulation (T&S) activities must be robust, versatile, and tailored to protect sensitive equipment while ensuring ease of deployment and usability in varied environments.

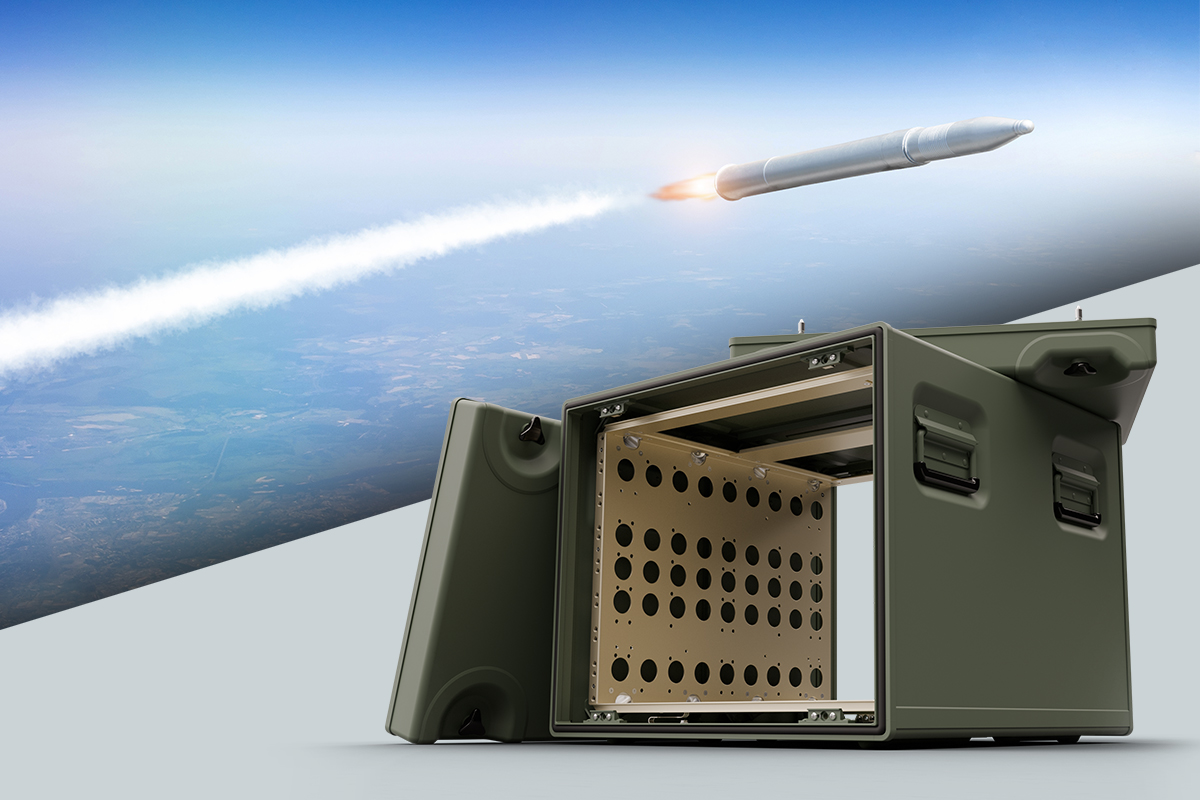

Missile & Tracking
Our rugged missile cases are engineered to protect and enhance missile and tracking equipment, providing secure and resilient performance in demanding environments. With a focus on ultimate protection and reliability, DESAPRO supports the packaging of these sensitive assets with innovative concepts.

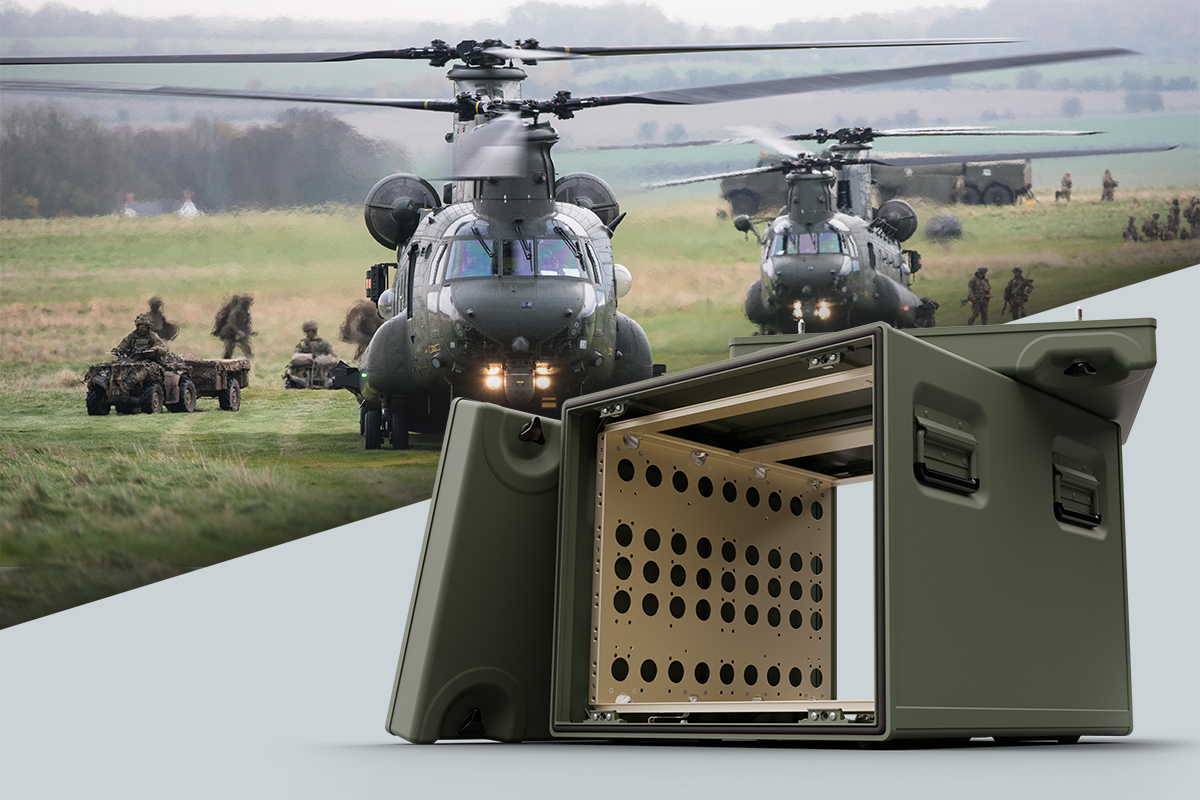

Test & Ground Support Systems
Our durable and reliable solutions support various ground operations and maintenance tasks. With a focus on innovation and resilience, DESAPRO’s systems are built to withstand challenging environments while delivering exceptional performance. Explore our comprehensive range of Test & Ground Support Systems (TGSS).

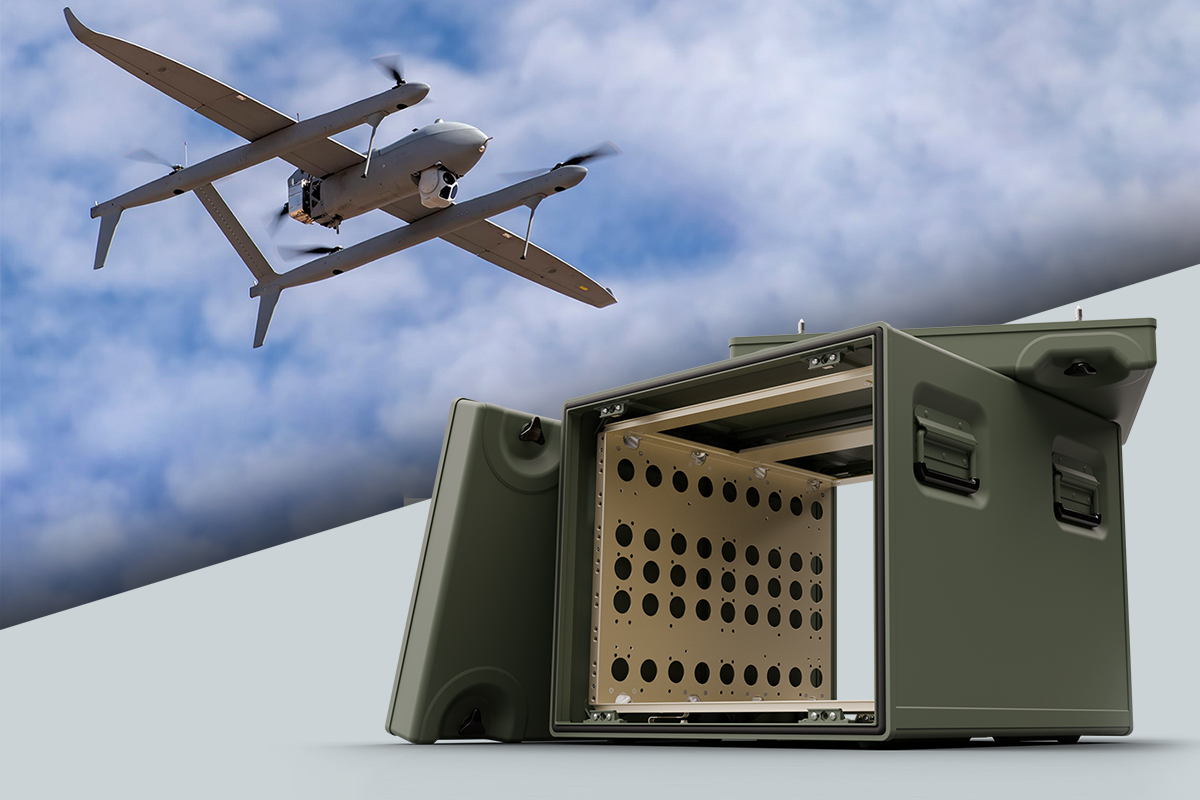

Unmanned Vehicles
Unmanned Vehicle, also known as UAV’s/drones, robots or underwater vehicles, are utilized in various fields and carry various payloads. They increase efficiency and the ability to access inaccessible areas. The need for a modular, light weight and small form factor packaging is most critical.

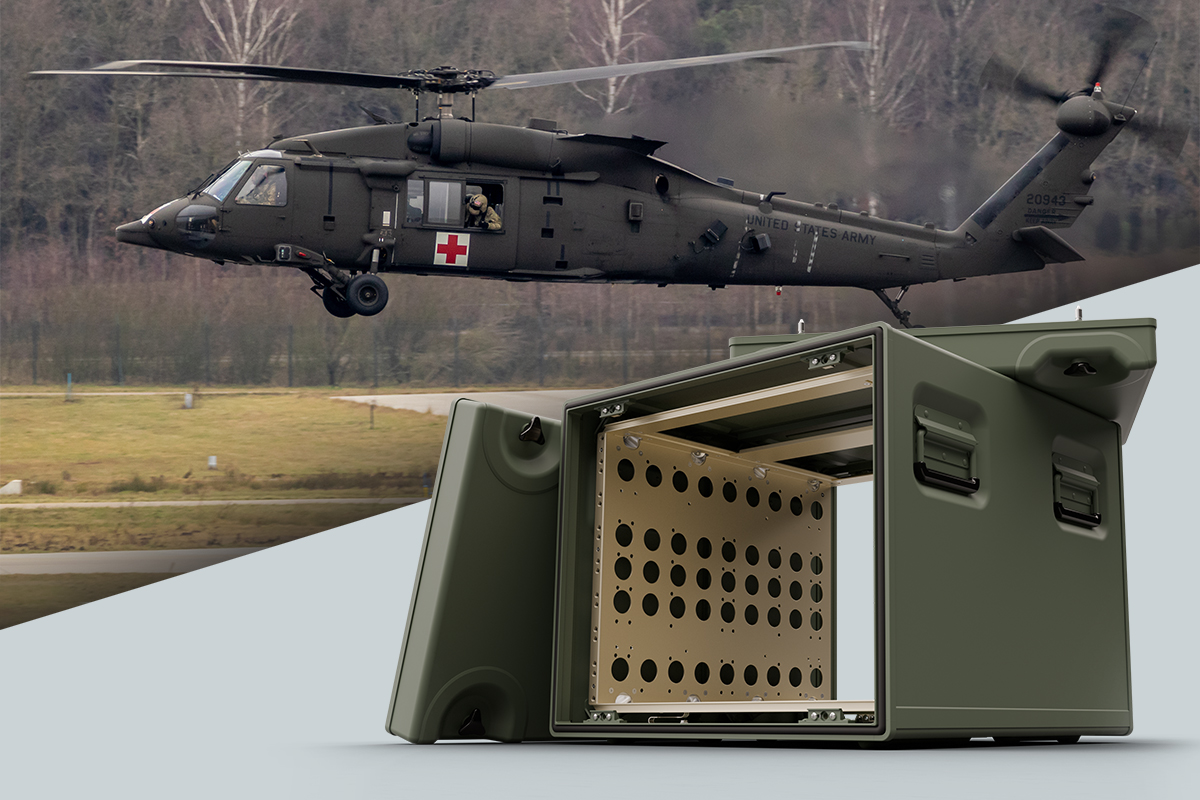

MEDeVAC & Emergency Response
Our solutions are engineered for rapid deployment and reliable performance, ensuring effective medical evacuation and emergency management in various environments. With advanced technology and durable designs, DESAPRO’s systems support first responders and medical teams, enhancing their ability to operate efficiently and safely.

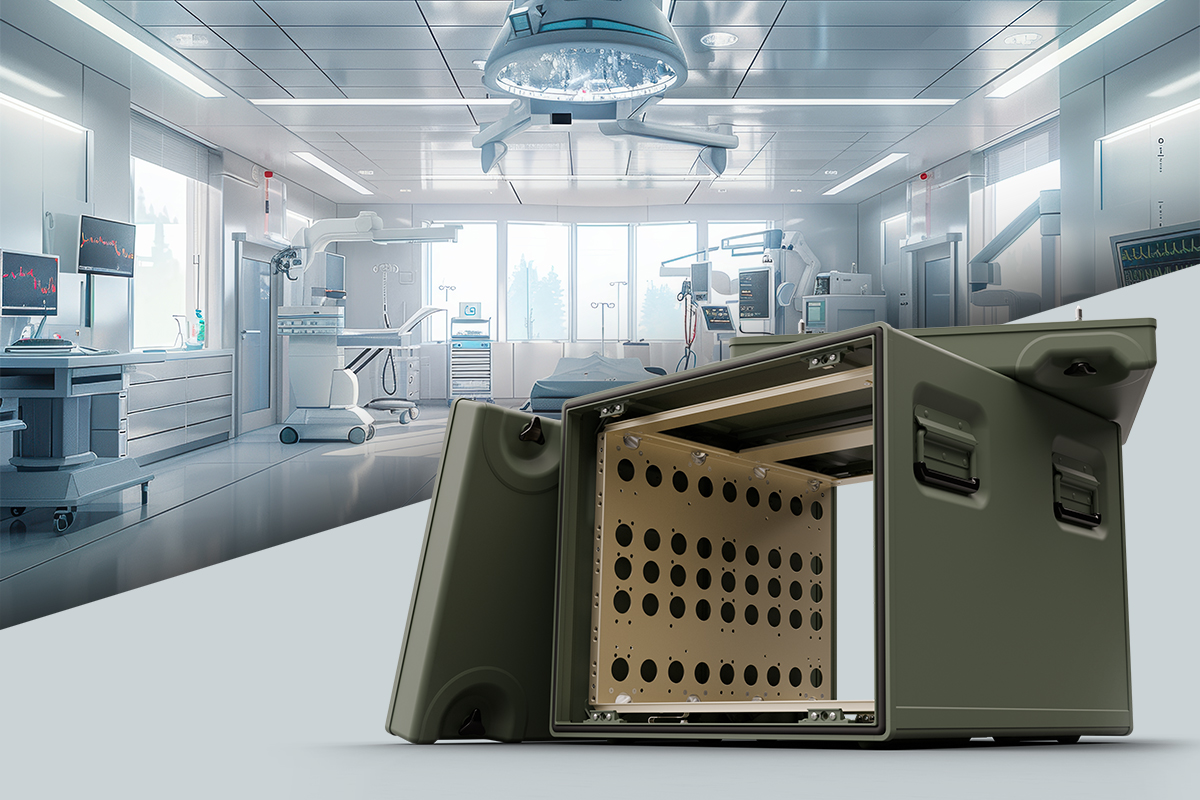

Medical
Our advanced systems ensure reliable performance and adaptability for various medical applications, including equipment protection and support. Built with a focus on safety and resilience, DESAPRO’s solutions cater to the rigorous demands of the medical field, facilitating effective healthcare delivery.
PROTECTION AGAINST ENVIRONMENTAL STRESS
Extreme on the outside, Safe on the inside
Undesirable influences from various sources which occur during transport, storage or use can have a damaging effect on sensitive electronic components and therefore present considerable risks. These risks are eliminated by using MILEX Cases.

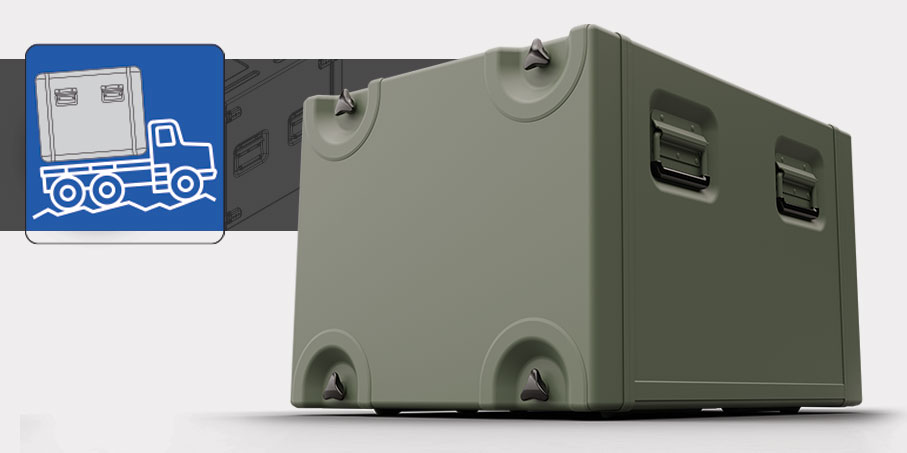

Protection against mechanical stress
Vibration

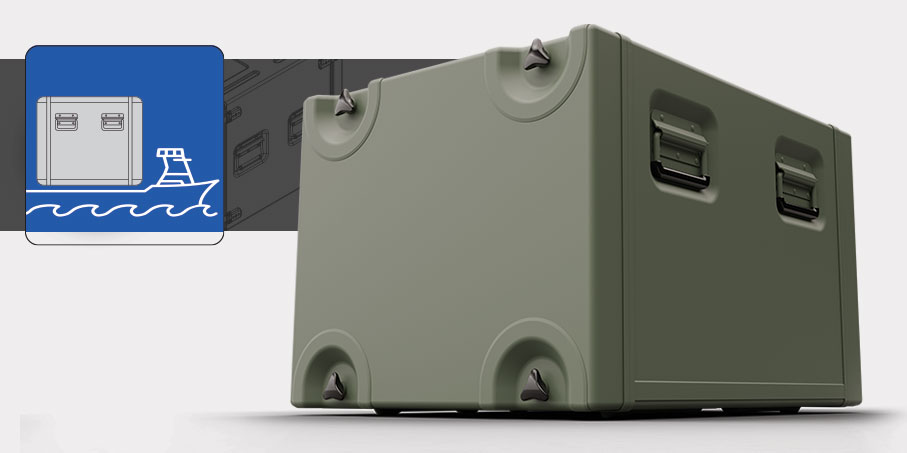

Shock

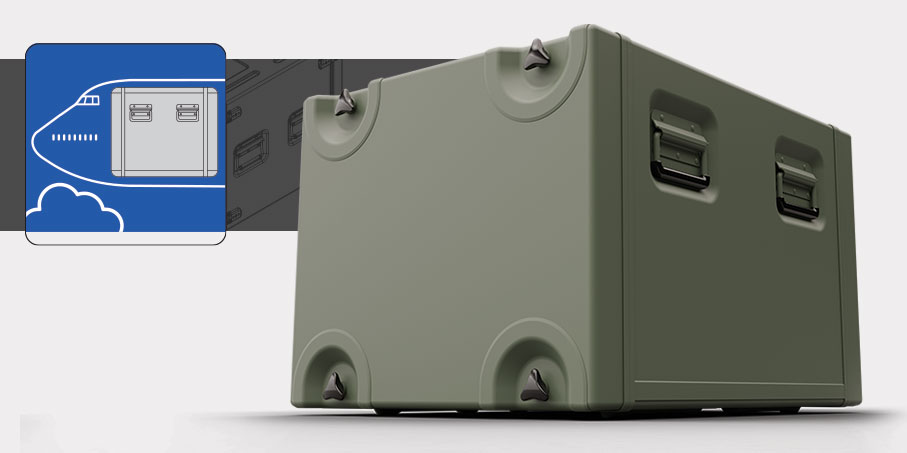

Drop Shock
Low Pressure (altitude)
Protection against climatic stress
High Temperature
Low Temperature
Temperature Shock

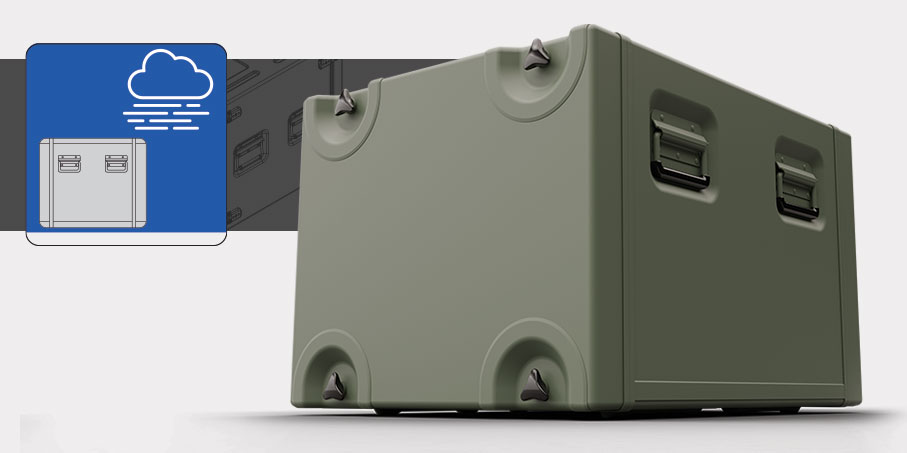

Salt fog
Sand and Dust
High Humidity
Protection against internal produced or external electrical stress
Jamming Transmissions
Switching Operations

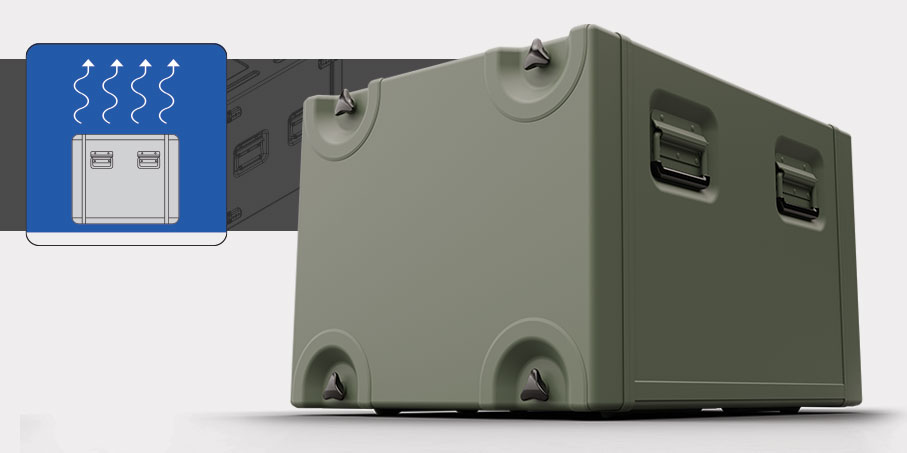

Heat Dissipitation

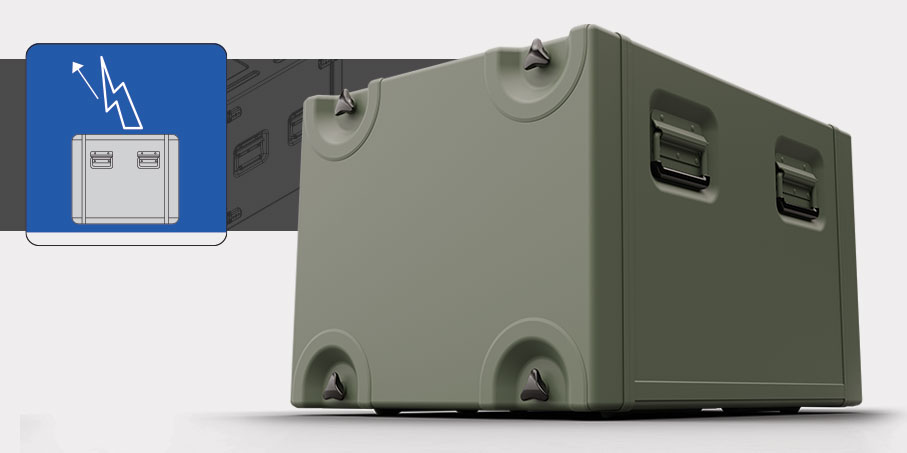

High Voltage Components
Radio Frequency Radiation
Technical Specifications of DESAPRO Milex Transit Cases
Understanding the technical specifications of Milex transit cases is crucial for selecting the right case for a given application.
Here are some key technical details:
CONCLUSION
DESAPRO MILEX transit cases represent the pinnacle of design and engineering in protective transportation solutions. With a perfect blend of durability, versatility, and advanced protection, they are ideal for a wide range of industries, including military, aerospace, medical, and industrial sectors. MILEX cases provide robust protection for critical equipment, ensuring safe and secure transport even in the harshest environments. Each case is designed to meet specific needs, offering long-lasting reliability and peace of mind for mission-critical operations across demanding applications.
As industries continue to evolve and new challenges emerge, DESAPRO remains committed to innovation and excellence. The MILEX series, with its robust construction and adaptable design, is well-positioned to meet the demands of the future, providing solutions that are not only effective but also sustainable and forward-thinking. Whether in harsh environmental conditions or high-stakes transportation scenarios, DESAPRO MILEX transit cases will continue to play a crucial role in safeguarding the valuable equipment that drives our modern world.
Let's talk
Contact DESAPRO today to learn more about our MILEX Case solutions. Let us help you safeguard your critical equipment with durable, high-performance cases designed to withstand the toughest environments.
